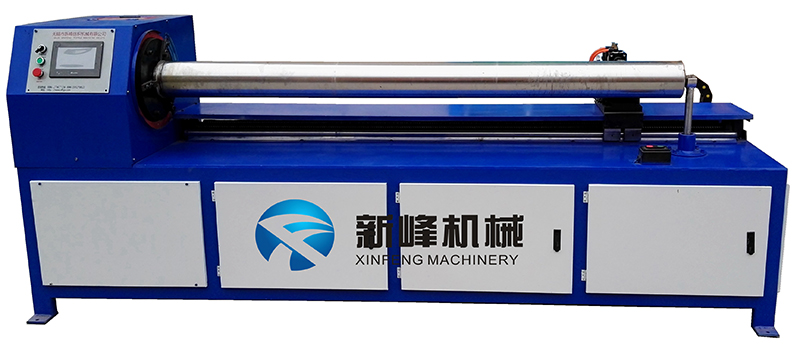

XFJQ-308A Digital control tube recutting machine
| 技術參數 |
|
|
|
| 紙管內徑 |
76-250mm |
| 紙管厚度 |
3-20mm |
| 切管長度 |
5-2500mm |
| 切刀數量 |
1組 |
| 控制方式 |
數控 |
| 電機功率 |
主電機2.2KW/伺服電機1.5KW |
| 上卸料方式 |
手動 |
| 切割方式 |
紙管旋轉刀軸不轉 |
| 夾緊方式 |
自動卡盤 |
| 下刀方式 |
氣動下刀 |
| 操作人員 |
1人 |
| 機械尺寸 |
3400*1500*1550mm |
| 機械毛重 |
500KG |
|
|
| Technical parameter |
|
|
|
| Diameter |
76-250mm |
| Thickness |
3-20mm |
| Cut length |
5-2500mm |
| Knife quanility |
1 Set |
| Control way |
PLC |
| Power |
Mainframe 2.2KW,Servo 1.5KW |
| Load/unload way |
Manual |
| Cutting way |
Tube totaing,shaft not |
| Fixing way |
Auto chuck |
| Way of knife moving |
Pneumatic |
| Operator |
1 person |
| Operator |
3400*1500*1550mm |
| Operator |
500KG |
